Introduction

This vignette demonstrates pedigree visualization with ggPedigree() from ggpedigree. Pedigree plots are central to fields like human genetics, behavioral science, and genealogy, where understanding lineage and familial relationships informs diagnosis, analysis, and interpretation.

ggPedigree() builds on ggplot2 and kinship2, leveraging modular helpers from both BGmisc and ggpedigree to streamline plot generation while retaining full aesthetic flexibility.

Unlike base R pedigree tools, this package returns a ggplot2 object, meaning users can customize their output using familiar ggplot2 syntax, themes, scales, and layering. Throughout this vignette, we walk through basic usage, layout control, status overlays, aesthetic customization, and faceting for multifamily visualization.

We use two bundled example datasets (from BGmisc) to illustrate the package’s capabilities. The first dataset, potter, contains a fictional wizarding family tree, while the second dataset, hazard, includes a multigenerational historical pedigree with affected/unaffected status.

Basic usage

We begin by loading the required libraries. These include the main plotting package ggpedigree, helper utilities from BGmisc, and supporting tools for aesthetic and data manipulation.

library(ggpedigree) # ggPedigree lives here
library(BGmisc) # helper utilities & example data
library(ggplot2) # ggplot2 for plotting
library(viridis) # viridis for color palettes
library(tidyverse) # for data wrangling

The simplest usage requires a data frame and column names for family and individual IDs. Here’s a basic pedigree plot using the potter data:

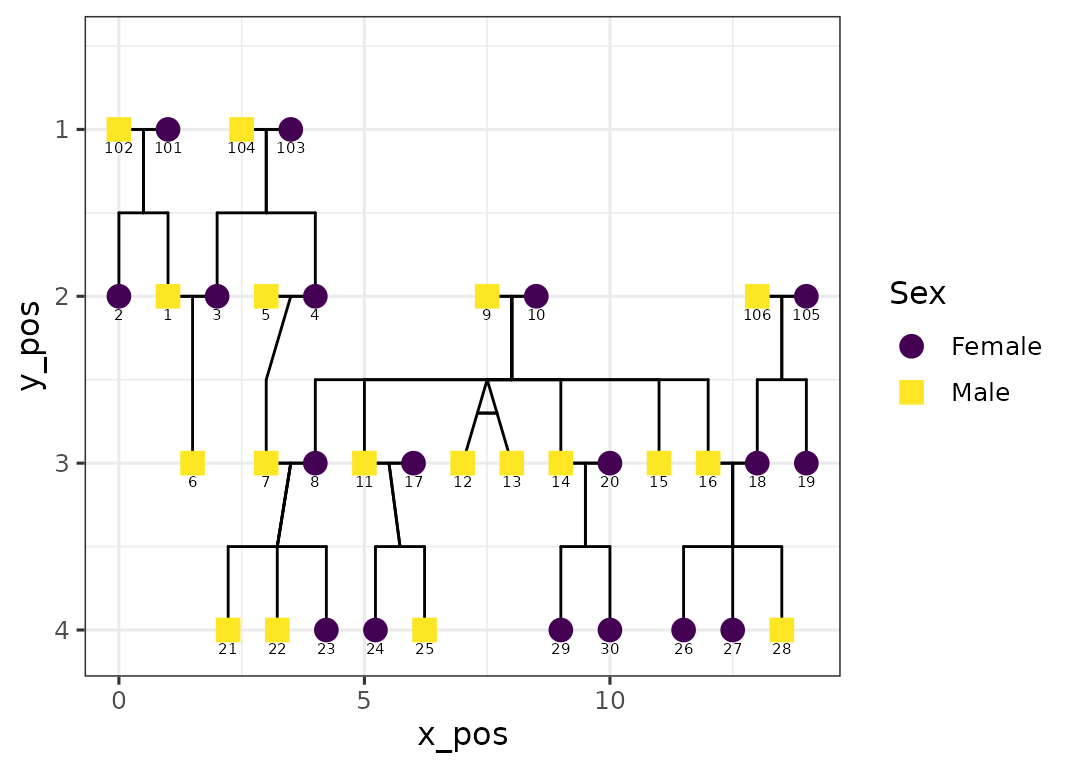

ggPedigree(potter,
  famID = "famID",
  personID = "personID"
)

Behind the scenes, ggPedigree():

  1. reshapes the data by family (ped2fam()),

  2. recodes sex (e.g., 0/1/NA) into semantic labels via recodeSex()

  3. extracts a layout grid with calculateCoordinates()

  4. builds connection segments for spouses, siblings, parents, and offspring with calculateConnections()

The result is returned as a ggplot2 object, which allows immediate post-processing with standard ggplot syntax.

Customizing Aesthetics

Most appearance settings are managed through a config list, which allows for fine-tuned customization. If any options are omitted, they fall back to predefined defaults. For example, we can turn off sex-based fill color and assign specific colors to connection segments, while also changing the shapes of individuals in the pedigree:

ggPedigree(
  potter,
  famID = "famID",
  personID = "personID",
  config = list(
    code_male = 1, # Here, 1 = male, 0 = female
    sex_color_include = FALSE,
    point_size = 5,
    outline_multiplier = 1.15,
    line_width = 2.5,
    sex_shape_female = "💸",
    sex_shape_male = "🖤",
    segment_spouse_color = viridis_pal()(5)[1],
    segment_sibling_color = viridis_pal()(5)[2],
    segment_parent_color = viridis_pal()(5)[3],
    segment_offspring_color = viridis_pal()(5)[4],
    segment_mz_color = viridis_pal()(5)[5],
    #   segment_linetype = 3,
    outline_include = TRUE,
    outline_color = "grey" # viridis_pal()(5)[5]
  )
)

As with any ggplot2 object, further theming and labeling can be applied using layers or themes. For instance:

ggPedigree(potter,
  famID = "famID",
  personID = "personID"
) +
  theme_bw(base_size = 12)

This can be particularly useful for matching house styles in academic publications or removing clutter for presentations.

Labeling Individuals

You can also label individuals in the pedigree using the label_method argument. The default is geom_label_repel(), which uses the ggrepel package to avoid overlapping labels. You can also use geom_text() for simpler labeling. Other configurable options include label_col for the label column, label_text_angle for text rotation, label_nudge_y for vertical adjustment, and label_nudge_x for horizontal adjustment.

ggPedigree(
  potter,
  famID = "famID",
  personID = "personID",
  config = list(
    label_col = "name",
    sex_color_palette = c("pink", "blue"),
    label_text_angle = -45,
    label_nudge_y = -.25,
    label_nudge_x = 0.45,
    label_method = "geom_text",
    #   sex_color_palette = c("black", "black"),
    sex_color_include = TRUE
  )
)

Overlaying Status Information

In many applied settings, pedigrees include binary phenotypes such as affected/unaffected status. To incorporate this, use the status_column argument to point to a column containing the relevant variable.

data("hazard")

p <- ggPedigree(
  hazard,
  famID = "famID",
  personID = "ID",
  status_column = "affected",
  config = list(
    code_male = 0,
    sex_color_include = TRUE,
    status_code_affected = TRUE,
    status_code_unaffected = FALSE,
    status_shape_affected = 4
  )
)

p

The status_column argument allows you to specify a column that identifies affected/unaffected individuals. This column should be a factor or character vector; if not, ggPedigree() will coerce it.

The behavior differs depending on whether sex_color_include is also enabled:

  • If sex_color_include = TRUE, affected individuals are overlaid with a shape (controlled by status_shape_affected), preserving the fill color by sex.

  • If sex_color_include = FALSE, affected and unaffected individuals are instead colored by status, using a default fill scale.

You can control how values are interpreted via the affected and unaffected parameters in config. By default, TRUE is considered affected and FALSE unaffected.

ggPedigree(
  hazard,
  famID = "famID",
  personID = "ID",
  status_column = "affected",
  config = list(
    code_male = 0,
    sex_color_include = FALSE,
    status_code_affected = TRUE,
    status_code_unaffected = FALSE,
    status_label_affected = "Infected",
    status_label_unaffected = "Not infected",
    status_legend_title = "Status"
  )
)

Highlighting Specific Individuals

You can also highlight specific individuals in the pedigree through other approaches, such as by creating a new column in your data frame. For example, if you want to highlight Harry Potter and Dudley Dursley, you can create a new column called proband and set it to TRUE for those individuals. You can specify the status_shape_affected to be a star shape (8) and use the status_column argument to indicate the probands.

df <- potter

df <- df %>%
  mutate(proband = ifelse(name %in% c(
    "Harry Potter",
    "Dudley Dursley"
  ), TRUE, FALSE))

ggPedigree(
  df,
  famID = "famID",
  personID = "personID",
  status_column = "proband",
  config = list(
    sex_color_include = TRUE,
    status_include = TRUE,
    status_code_affected = TRUE,
    status_code_unaffected = FALSE,
    status_shape_affected = 8 # "✨"  # star shape
  )
)

Highlighting Harry Potter

Alternatively, you can use what I’ve called focal filling. The focal_fill argument allows you to highlight one person and their relatives without modifying the data frame. This is particularly useful when you want to emphasize a specific individual, such as Harry Potter, in the pedigree plot. The focal_fill_personID argument allows you to specify the person ID to highlight, and the focal_fill_include argument determines whether to include this highlighting in the plot. Other arguments like focal_fill_method, focal_fill_n_breaks, and focal_fill_scale_midpoint control the appearance of the highlighted area. Notably, you can select focal_fill_component to a specific component, such as “additive”, which will highlight the additive genetic relatives of the focal person.

ggPedigree(potter,
  famID = "famID",
  personID = "personID",
  config = list(
    focal_fill_personID = 7,
    focal_fill_include = TRUE,
    #  focal_fill_high_color = "yellow",
    #  focal_fill_mid_color = "red",
    #   focal_fill_low_color = "#0D082AFF",
    focal_fill_force_zero = TRUE,
    focal_fill_na_value = "black",
    focal_fill_scale_midpoint = 0.25,
    focal_fill_component = "additive",
    focal_fill_method = "gradient",
    focal_fill_n_breaks = NULL,
    focal_fill_legend_title = "Genetic Relatives \nof Harry Potter",
    # "additive",
    sex_color_include = FALSE
  ) # highlight Harry Potter
  # config  = list(segment_mz_color = NA) # color for monozygotic twins
)

Here we highlight Harry Potter (ID 7) and his relatives in the pedigree plot. Other components can be highlighted by changing the focal_fill_component argument. For example, you can set it to “mitochondrial” to highlight mitochondrial relatives, or “x” to highlight X-linked relatives. The focal_fill_method can be set to “gradient” for a smooth gradient effect or “steps” for distinct color breaks.

m1 <- ggPedigree(potter,
  famID = "famID",
  personID = "personID",
  config = list(
    focal_fill_personID = 7,
    focal_fill_include = TRUE,
    focal_fill_high_color = "green",
    # focal_fill_mid_color = "white",
    focal_fill_low_color = "black",
    focal_fill_scale_midpoint = 0.55,
    focal_fill_component = "mitochondrial",
    focal_fill_method = "steps",
    focal_fill_n_breaks = 19,
    focal_fill_legend_show = FALSE,
    focal_fill_legend_title = "Mitochondrial Relatives \nof Harry Potter",
    sex_color_include = FALSE
  ) # highlight Harry Potter
  # config  = list(segment_mz_color = NA) # color for monozygotic twins
) + ggplot2::guides(shape = "none")
m2 <- ggPedigree(potter,
  famID = "famID",
  personID = "personID",
  config = list(
    focal_fill_personID = 8,
    focal_fill_include = TRUE,
    focal_fill_high_color = "orange",
    # focal_fill_mid_color = "white",
    focal_fill_low_color = "black",
    focal_fill_scale_midpoint = 0.55,
    focal_fill_component = "mitochondrial",
    focal_fill_method = "steps",
    focal_fill_n_breaks = 19,
    focal_fill_legend_show = FALSE,
    focal_fill_legend_title = "Mitochondrial Relatives \nof Ginny Weasley",
    sex_color_include = FALSE
  ) # highlight Harry Potter
  # config  = list(segment_mz_color = NA) # color for monozygotic twins
) + ggplot2::guides(shape = "none")

library(patchwork) # for combining plots

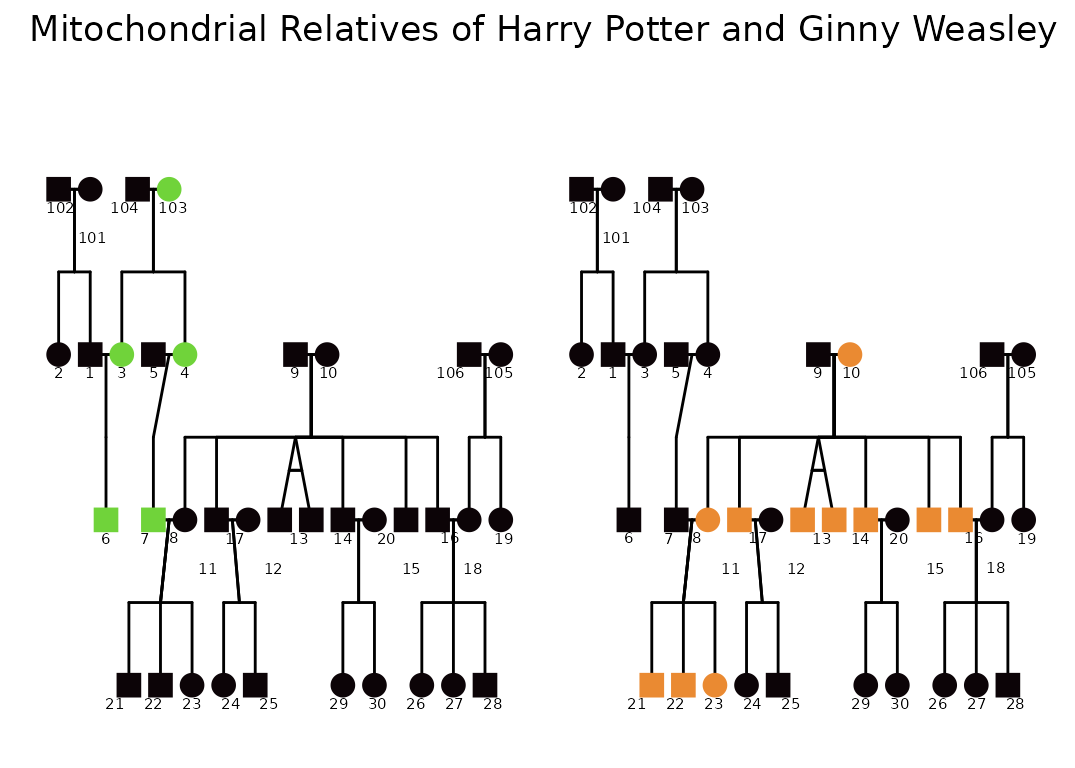

m1 + m2 + plot_layout(ncol = 2) +
  plot_annotation(title = "Mitochondrial Relatives of Harry Potter and Ginny Weasley")

ggPedigree(potter,
  famID = "famID",
  personID = "personID",
  config = list(
    focal_fill_personID = 8,
    focal_fill_include = TRUE,
    # focal_fill_mid_color = "white",
    focal_fill_low_color = "black",
    focal_fill_scale_midpoint = 0.55,
    focal_fill_component = "matID",
    focal_fill_method = "viridis_d",
    focal_fill_viridis_option = "turbo",
    focal_fill_n_breaks = 19,
    focal_fill_legend_show = FALSE,
    focal_fill_legend_title = "Mitochondrial Relatives",
    sex_color_include = FALSE,
    overlay_include = FALSE
  ) # highlight Harry Potter
  # config  = list(segment_mz_color = NA) # color for monozygotic twins
) + ggplot2::guides(shape = "none")

Multiple families in one graphic

If you have multiple families in your data frame, you can use the facet_wrap() function from ggplot2 to create separate plots for each family. This is useful if you want to compare the pedigrees of different families side by side. Note that you can use scales = "free_x" to allow each family to have its own x-axis scale.

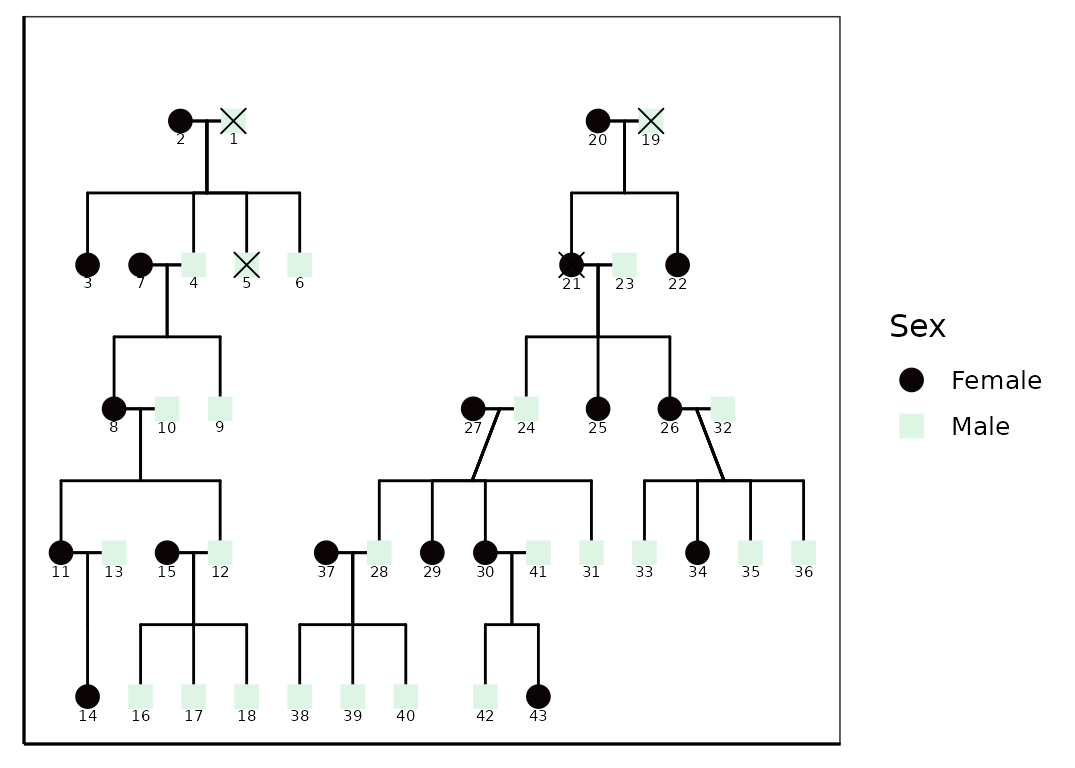

p +
  facet_wrap(~famID, scales = "free_x")

Adjusting Plot Appearance

The layout appearance can be refined using theme() elements. This doesn’t change the pedigree structure but helps declutter the visualization.

p +
  theme_bw(base_size = 12) +
  theme(
    panel.grid.major = element_blank(),
    panel.grid.minor = element_blank(),
    panel.background = element_blank(),
    axis.line        = element_line(colour = "black"),
    axis.text.x      = element_blank(),
    axis.text.y      = element_blank(),
    axis.ticks.x     = element_blank(),
    axis.ticks.y     = element_blank(),
    axis.title.x     = element_blank(),
    axis.title.y     = element_blank()
  ) + scale_color_viridis(
    option = "mako",
    discrete = TRUE,
    labels = c("Female", "Male", "Unknown")
  )
#> Scale for colour is already present.
#> Adding another scale for colour, which will replace the existing scale.

Advanced Examples: Large Pedigrees with self-loops

Additional examples are provided as articles that demonstrate more complex pedigree plots. You can find these on the ggpedigree website. These articles cover advanced topics such as: multiple families, self-loops, and other advanced features.
