Extended Plotting Phenotypic Correlation by Degree of Relatedness

S. Mason Garrison

2025-06-13

Source: vignettes/articles/v21_phenotypicbydegree.Rmd
v21_phenotypicbydegree.Rmd

This vignette demonstrates how to visualize phenotypic correlation by degree of relatedness using the ggPhenotypeByDegree function from the ggpedigree package. This function is particularly useful for analyzing and visualizing the relationship between phenotypic traits and genetic relatedness in pedigree data.

The example below uses a squirrel pedigree dataset to illustrate how to create a plot showing the phenotypic correlation across different degrees of relatedness.
Click to expand pedigree setup
library(ggpedigree)
library(BGmisc)
library(data.table)
# Load the example data
data("redsquirrels")
library(dplyr)
# library(broom) # for tidy()
library(purrr) # for map_* helpers
# Filter for the largest family, recode sex if needed
ped_filtered <- redsquirrels %>%
  recodeSex(code_female = "F") %>%
  filter(famID == 160)

kin_degree_max <- 12 # maximum degree of relatedness to consider
# Calculate relatedness matrices
add_mat <- ped2add(ped_filtered, isChild_method = "partialparent", sparse = TRUE)
mit_mat <- ped2mit(ped_filtered, isChild_method = "partialparent", sparse = TRUE)
cn_mat <- ped2cn(ped_filtered, isChild_method = "partialparent", sparse = TRUE)

df_links <- com2links(
  writetodisk = FALSE,
  ad_ped_matrix = add_mat,
  mit_ped_matrix = mit_mat,
  cn_ped_matrix = cn_mat,
  drop_upper_triangular = TRUE,
  gc = FALSE
)
dataRelatedPair_merge <- df_links %>%
  left_join(ped_filtered %>% select(personID, lrs, ars_n),
    by = c("ID1" = "personID")
  ) %>%
  rename(
    lrs_k1 = lrs,
    ars_n_k1 = ars_n
  ) %>%
  left_join(ped_filtered %>% select(personID, lrs, ars_n),
    by = c("ID2" = "personID")
  ) %>%
  rename(
    lrs_k2 = lrs,
    ars_n_k2 = ars_n
  )

# double enter
dxlist <- c(
  "ID1", "ID2", # intentional ordering
  "addRel", "mitRel",
  "cnuRel",
  names(dataRelatedPair_merge)[endsWith(names(dataRelatedPair_merge), "_k2")],
  names(dataRelatedPair_merge)[endsWith(names(dataRelatedPair_merge), "_k1")]
)

kin_degrees <- 0:12
rel_vals <- 2^(-kin_degrees)
rel_bins <- purrr::map_chr(rel_vals, ~ paste0("addRel_", .x))
rel_labels <- c("addRel_1+" = "addRel_1+")

# bin assignment function
assign_addRel_bin <- function(rel) {
  for (val in rel_vals) {
    upper <- val * 1.1
    lower <- val * 0.9
    if (!is.na(rel) && rel >= lower && rel <= upper) {
      return(paste0("addRel_", val))
    } else if (!is.na(rel) && rel > upper) {
      return(paste0("addRel_+", val))
    }
  }
  if (!is.na(rel) && rel > 2^0 * 1.1) {
    return("addRel_1+")
  }
  if (!is.na(rel) && rel == 0) {
    return("addRel_0")
  }
  return(NA_character_)
}



dataRelatedPair_merge <- data.table::rbindlist(
  list(
    dataRelatedPair_merge,
    dataRelatedPair_merge[, dxlist]
  ),
  use.names = FALSE
) %>%
  mutate(addRel_bin = vapply(addRel, assign_addRel_bin, character(1))) %>%
  mutate(addRel_factor = factor(addRel_bin, levels = c("addRel_1+", rel_bins, paste0("addRel_+", rel_vals), "addRel_+0", "addRel_0"))) %>%
  select(-addRel_bin)






result <- dataRelatedPair_merge %>%
  group_by(addRel_factor, mitRel, cnuRel) %>%
  summarise(
    n_pairs = n() / 2, # divide by 2 to account for double counting
    lrs_cor_test = list(tryCatch(cor.test(lrs_k1, lrs_k2, use = "pairwise.complete.obs"),
      error = function(e) NULL
    )),
    ars_n_cor_test = list(tryCatch(cor.test(ars_n_k1, ars_n_k2, use = "pairwise.complete.obs"),
      error = function(e) NULL
    )),
    addRel_mean = mean(addRel, na.rm = TRUE),
    addRel_sd = sd(addRel, na.rm = TRUE),
    addRel_min = min(addRel, na.rm = TRUE),
    addRel_max = max(addRel, na.rm = TRUE),
    .groups = "drop" # eliminates the need for ungroup()
  ) %>%
  ## unpack the two cor.test() objects -------------------------------
  mutate(
    # ---- LRS pair ----
    cor_lrs = map_dbl(lrs_cor_test, ~ if (is.null(.x)) NA_real_ else .x$estimate),
    cor_lrs_stat = map_dbl(lrs_cor_test, ~ if (is.null(.x)) NA_real_ else .x$statistic),
    cor_lrs_p = map_dbl(lrs_cor_test, ~ if (is.null(.x)) NA_real_ else .x$p.value),
    cor_lrs_df = map_dbl(lrs_cor_test, ~ if (is.null(.x)) NA_real_ else .x$parameter),
    cor_lrs_ci_lb = map_dbl(lrs_cor_test, ~ if (is.null(.x)) NA_real_ else .x$conf.int[1] * sqrt(2)),
    cor_lrs_ci_ub = map_dbl(lrs_cor_test, ~ if (is.null(.x)) NA_real_ else .x$conf.int[2] * sqrt(2)),

    # ---- ARS‑n pair ----
    cor_ars_n = map_dbl(ars_n_cor_test, ~ if (is.null(.x)) NA_real_ else .x$estimate),
    cor_ars_n_stat = map_dbl(ars_n_cor_test, ~ if (is.null(.x)) NA_real_ else .x$statistic),
    cor_ars_n_p = map_dbl(ars_n_cor_test, ~ if (is.null(.x)) NA_real_ else .x$p.value),
    cor_ars_n_df = map_dbl(ars_n_cor_test, ~ if (is.null(.x)) NA_real_ else .x$parameter),
    cor_ars_n_ci_lb = map_dbl(ars_n_cor_test, ~ if (is.null(.x)) NA_real_ else .x$conf.int[1] * sqrt(2)),
    cor_ars_n_ci_ub = map_dbl(ars_n_cor_test, ~ if (is.null(.x)) NA_real_ else .x$conf.int[2] * sqrt(2))
  ) %>%
  select(-lrs_cor_test, -ars_n_cor_test) %>% # drop the list‑columns once unpacked
  rename(cnu = cnuRel, mtdna = mitRel)

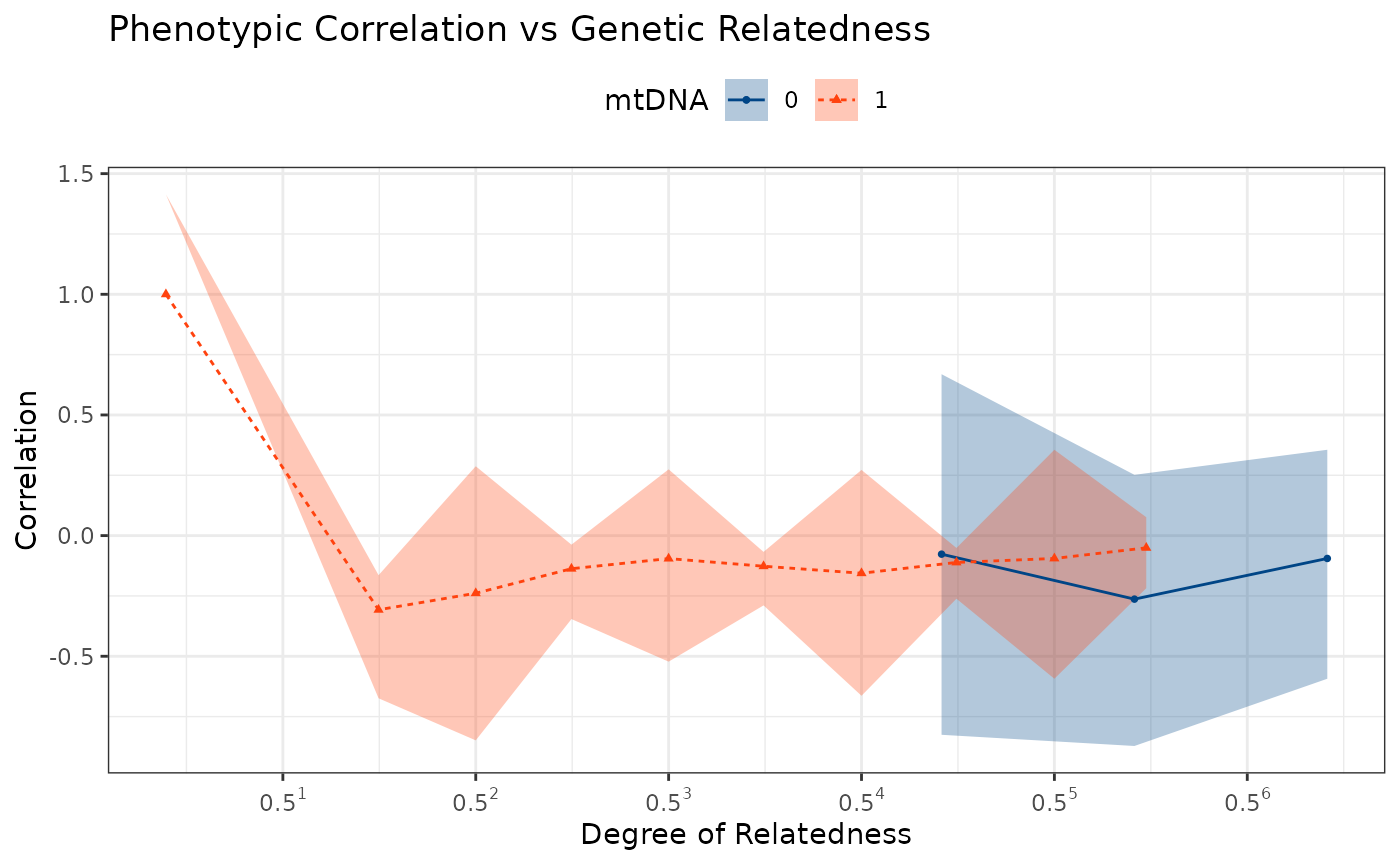

ggPhenotypeByDegree(
  df = result,
  y_var = "cor_lrs",
  y_ci_lb = "cor_lrs_ci_lb",
  y_ci_ub = "cor_lrs_ci_ub",
  config = list(
    use_only_classic_kin = FALSE,
    drop_classic_kin = FALSE,
    group_by_kin = TRUE,
    use_relative_degree = TRUE,
    drop_non_classic_sibs = FALSE,
    filter_degree_max = 12,
    grouping_column = "mtdna_factor",
    filter_n_pairs = 10
  )
)

Pedigree Setup

Click to expand pedigree setup
library(tibble)
library(dplyr)
library(ggpedigree)
df <- pedigree_df <- tribble(
  ~n_pairs,
  ~addRel_min,
  ~addRel_max,
  ~addRel_emp_min,
  ~addRel_emp_mean,
  ~addRel_emp_median,
  ~addRel_emp_max,
  ~mtdna,
  ~cnu,
  ~age_k1_meanFunction,
  ~male_k1_meanFunction,
  ~same_matID_meanFunction,
  ~same_patID_meanFunction,
  ~USA_flag_10_k1_meanFunction,
  ~USA_flag_10_polychorFunction_rho,
  ~USA_flag_10_polychorFunction_se,
  ~USA_flag_10_polychorFunction_chisq,
  ~USA_flag_10_polychorFunction_df,
  ~USA_flag_10_ml_polychorFunction,
  3617250, 0.225, 0.275, 0.2255859375, 0.247734086859983, 0.25, 0.27490234375, 1, 0, 59.2335021779651, 0.480619365892598, NA, NA, 0.249700992238048, 0.04517140756813, 0.000691314990032303, 0.00000799819827079773, 0, 0.0451713825840523,
  4983424, 0.225, 0.275, 0.2255859375, 0.247985118108249, 0.25, 0.27490234375, 0, 0, 60.2924621468198, 0.54683237363258, NA, NA, 0.247046760504304, 0.0409988164718674, 0.000599673001112523, 0.00000799819827079773, 0, 0.040998793040341,
  120024, 0.275, 0.45, 0.359375, 0.42720031928978, 0.4375, 0.44921875, 1, 1, 55.3786442198885, 0.519857671410953, NA, NA, 0.208202301154754, 0.169242204331722, 0.00393269696620211, 0.00000814738450571895, 0, 0.169234306738862,
  137947, 0.275, 0.45, 0.275146484375, 0.336850848231778, 0.34375, 0.447265625, 1, 0, 58.7404851093794, 0.436444779593302, NA, NA, 0.230130064360623, 0.0979941906533943, 0.00359788288853913, 0.00000800052657723427, 0, 0.0979945954952227,
  108989, 0.275, 0.45, 0.275390625, 0.328092281014401, 0.3125, 0.4453125, 0, 0, 60.2531852003308, 0.619355993501189, NA, NA, 0.233078768161892, 0.0774003012451702, 0.00404657995476565, 0.00000800139969214797, 0, 0.0774005589379321,
  1668205, 0.45, 0.55, 0.4501953125, 0.495319721631096, 0.4990234375, 0.549560546875, 1, 1, 57.9295757847709, 0.522333747318167, NA, NA, 0.257514897453126, 0.160645710133276, 0.000975187176863543, 0.0000904696062207222, 0, 0.16065612400207,
  729441, 0.45, 0.55, 0.451171875, 0.496536543871464, 0.5, 0.5498046875, 1, 0, 66.1279781018233, 0.275059425002599, NA, NA, 0.265100488202374, 0.150191012774079, 0.00152996759330951, 0.00000815372914075851, 0, 0.150193105587773,
  747643, 0.45, 0.55, 0.451171875, 0.49663045074013, 0.5, 0.5478515625, 0, 0, 65.9430606759445, 0.749751203807075, NA, NA, 0.262018010446397, 0.114532502819044, 0.00154238295730097, 0.00000800378620624542, 0, 0.114533380385551,
  44787, 0.55, 0.9, 0.55029296875, 0.724711065168643, 0.75, 0.8984375, 1, 1, 63.4350717031309, 0.520855662736692, NA, NA, 0.232835687466476, 0.9999, Inf, 29160.6932985728, 0, 0.952963916809192,
  4639, 0.55, 0.9, 0.55029296875, 0.569994330072125, 0.5625, 0.75, 1, 0, 62.3524143288736, 0.366174409830764, NA, NA, 0.231225722917566, 0.12373864513677, 0.0194548428304584, 0.00000800392444944009, 0, 0.123740641721645,
  2744, 0.55, 0.9, 0.55078125, 0.566952741528391, 0.5625, 0.75, 0, 0, 62.2241888686131, 0.758432087511395, NA, NA, 0.228467153284672, 0.123400997830296, 0.0254117516477019, 0.00000801651367510203, 0, 0.123405021390264,
  1018929, 0.9, 1.1, 0.90234375, 0.994306976854356, 1, 1.09375, 1, 1, 61.9059012997516, 0.523600756854653, NA, NA, 0.254706541475618, 0.9999, Inf, 12530.2189094715, 0, 0.9999,
  352, 1.1, 1.5, 1.1005859375, 1.12844427065416, 1.125, 1.25, 1, 1, 47.7579829059829, 0.545454545454545, NA, NA, 0.153846153846154, 0.9999, Inf, 3.76616019073219, 0, 0.9999
)

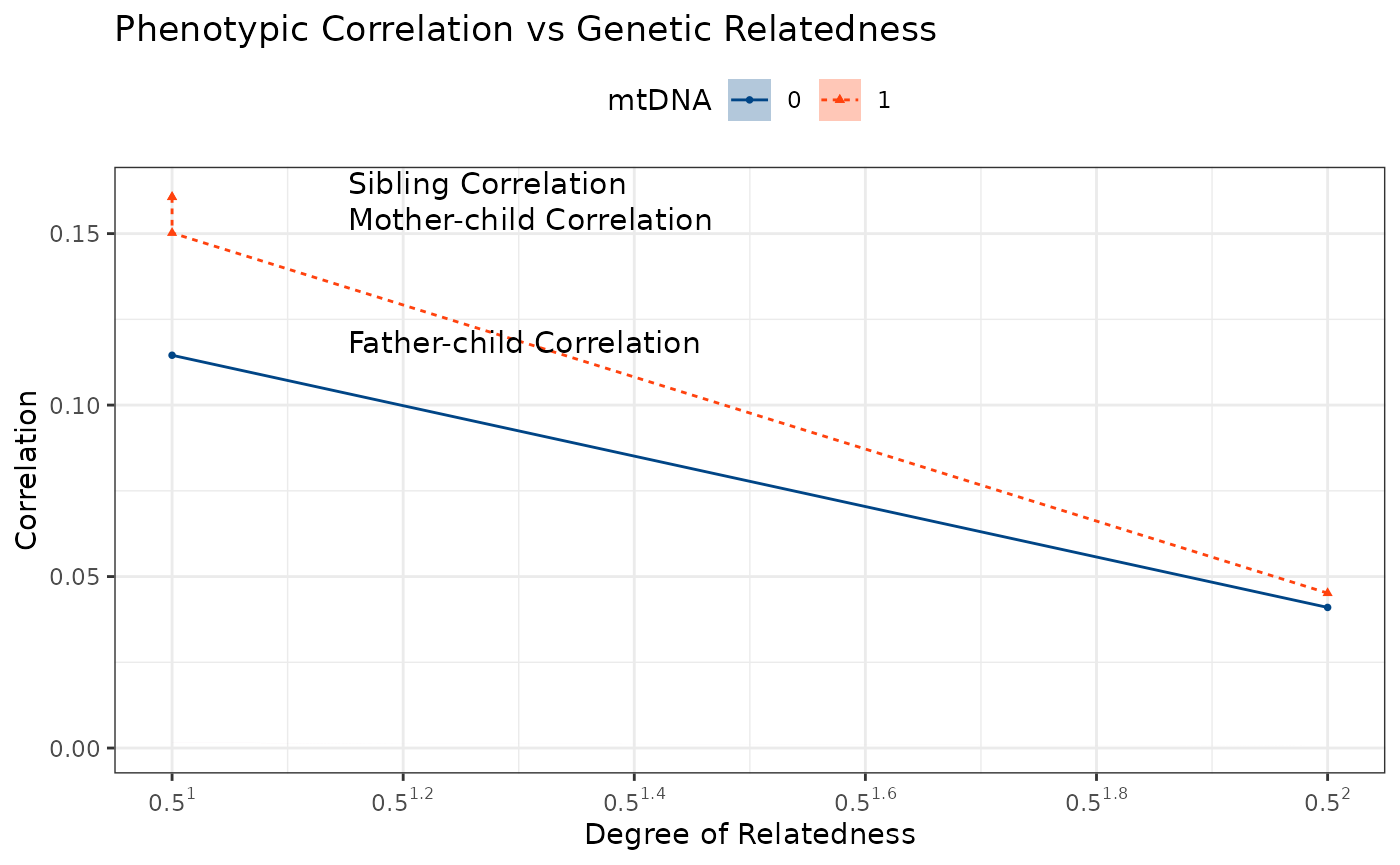

ggPhenotypeByDegree(
  df = df,
  y_var = "USA_flag_10_polychorFunction_rho",
  y_stem_se = "USA_flag_10_polychorFunction",
  y_se = "USA_flag_10_polychorFunction_se"
)
